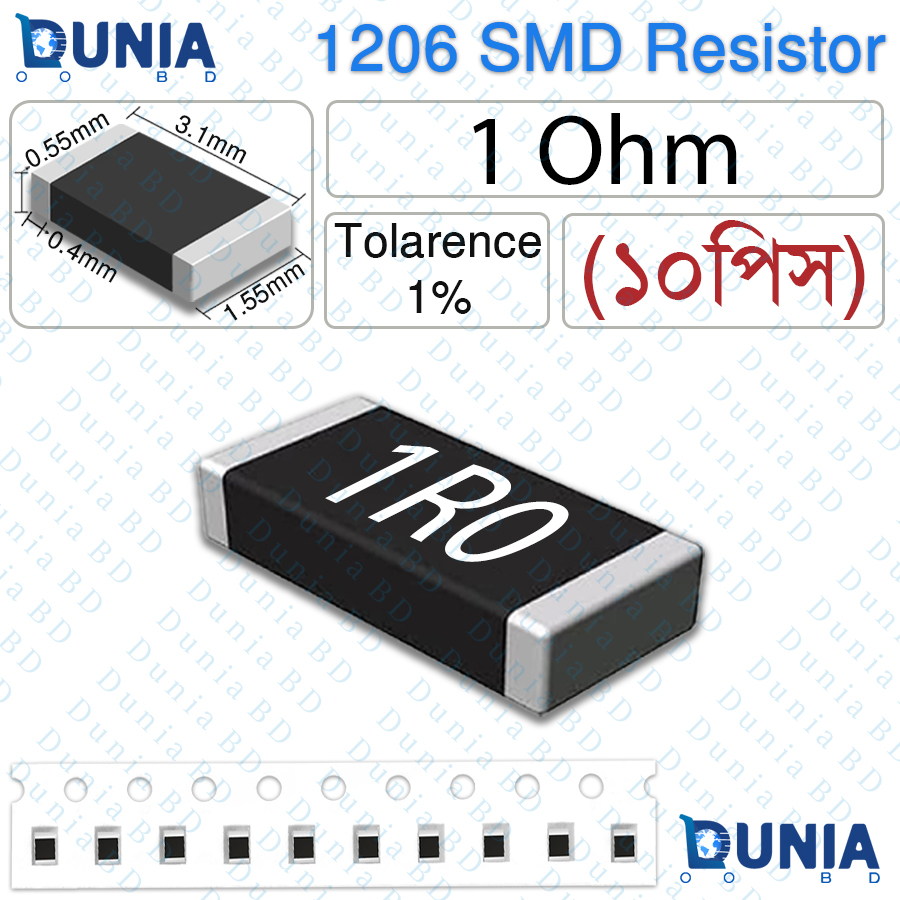

1 Ohm 1R0 1206 SMD Resistor 1/4W ±1% Tolerance Precision Low-Value Current Sense Chip Resistor

Description

Specifications

• 1 Ohm 1R0 1206 SMD Resistor 1/4W
• Resistance Value: 1 Ohm (1R0)
• Package Size: 1206 (3216 Metric)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 200V
• Dimensions (L x W x H): 3.2 mm × 1.6 mm × 0.55 mm
• RoHS Compliant: Yes

Features

• 1206 package offers higher power handling than 0805 while remaining compact
• ±1% tolerance for high accuracy in low-resistance measurement applications
• 1/4W (0.25W) power rating suitable for moderate current sensing and limiting
• Thick film technology provides low TCR and good pulse/surge capability
• Wide operating temperature range (-55°C to +155°C)
• RoHS compliant and lead-free production
• Excellent solderability and thermal performance for reflow assembly
• The 1 Ohm (1R0) 1206 SMD Resistor is a precision low-value resistor engineered for accurate current measurement and control in modern electronic designs. With tight ±1% tolerance and 1/4W power rating, it excels as a current-sense/shunt resistor in power management circuits, battery charging systems, motor drivers, LED drivers, DC-DC converters, over-current protection, and any application requiring precise current monitoring with minimal voltage drop. It is also widely used for current limiting in LED strings, low-resistance dropping in power supplies, and general low-ohm applications where accuracy and stability are critical.
• Thick film technology ensures low temperature coefficient of resistance (TCR), excellent pulse handling, low inductance, minimal self-heating drift, and strong long-term stability against humidity, thermal cycling, and aging effects—providing dependable performance in power electronics, automotive modules, industrial controls, consumer devices, and IoT/sensor nodes.
• The larger 1206 footprint (compared to 0805) delivers improved power dissipation and thermal performance while remaining compact enough for dense PCB layouts, making it suitable for both automated high-volume SMT production and manual assembly/repair.
• Fully RoHS compliant and manufactured under strict quality controls, this resistor is a trusted, high-accuracy low-value component that engineers rely on for precise current sensing and reliable operation in demanding low-resistance applications.

What is the price of 1 Ohm 1R0 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 1 Ohm 1R0 1206 SMD Resistor 1/4W in Bangladesh starts from [product_price id=”32193″] taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 1 Ohm 1R0 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at [dunia_link].

In Bangladesh, you can get original 1 Ohm 1R0 1206 SMD Resistor 1/4W From [dunia_link]. We have few collection of latest [selected_category] to purchase. Order [parent_category] Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the resistance value?
   Exactly 1 Ohm, marked as 1R0.
2. What package size is it?
   Standard 1206 SMD (3216 Metric).
3. How much power can it handle?
   Up to 1/4W (0.25W).
4. What is the tolerance?
   ±1% for high precision.
5. What is the maximum working voltage?
   200V.
6. What temperature range does it support?
   -55°C to +155°C.
7. Is reflow soldering supported?
   Yes, fully compatible with standard SMT reflow processes.
8. Is it RoHS compliant?
   Yes, lead-free and meets RoHS standards.
9. How is the value marked?
   Typically marked “1R0”.
10. What are the primary applications?
    Current sensing/shunt, LED current limiting, power monitoring, battery management, over-current protection, low-resistance dropping.
