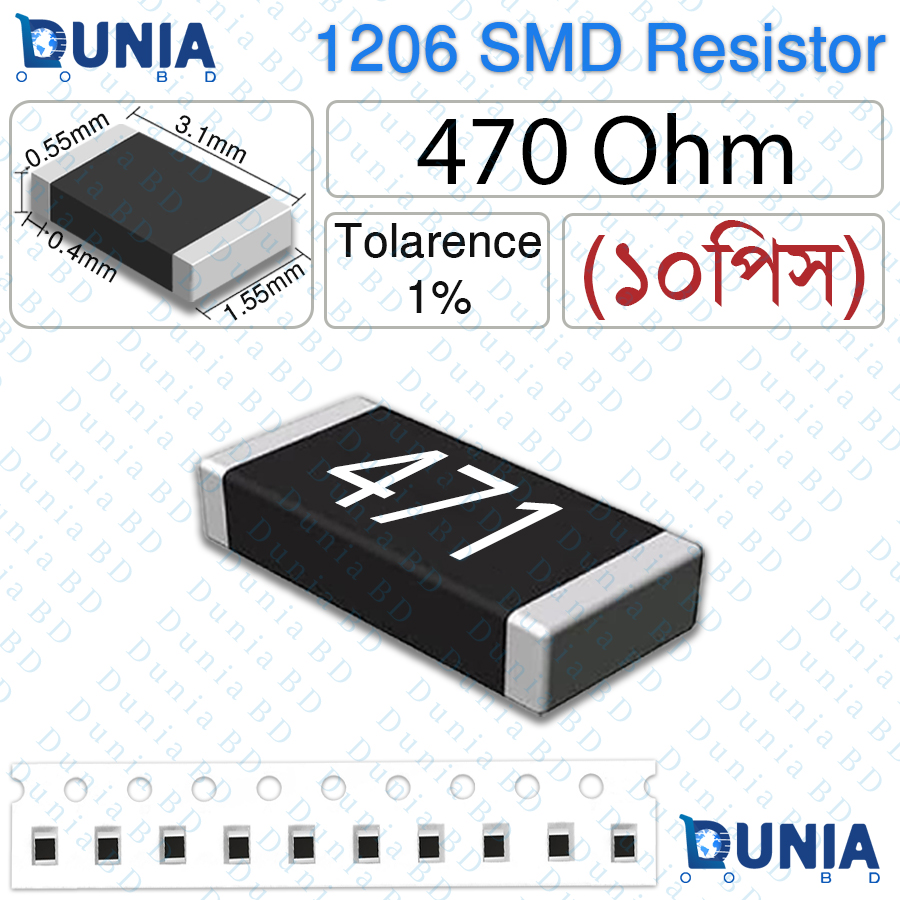

470 Ohm 471 1206 SMD Resistor 1/4W 1% Tolerance – Precision Chip Resistor

Description

Specifications

• 470 Ohm 471 1206 SMD Resistor 1/4W
• Resistance: 470 Ω
• Tolerance: ±1%
• Power Rating: 0.25 W (1/4 Watt)
• Package / Case: 1206 (3216 Metric)
• Dimensions (L × W × H): 3.10 mm × 1.60 mm × 0.55 mm (approx.)
• Maximum Working Voltage: 200 V
• Maximum Overload Voltage: 400 V
• Temperature Coefficient: ±100 ppm/°C
• Operating Temperature Range: -55°C to +155°C
• Technology: Thick Film
• Mounting Type: Surface Mount (SMD/SMT)
• Marking Code: 471

Features

• Resistance Value: 470 Ohm (471 marking)
• Package Size: 1206 (3216 Metric – 3.2mm × 1.6mm)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1% (high precision)
• Thick film technology for reliable and stable performance
• Operating Temperature: -55°C to +155°C
• Temperature Coefficient: ±100 ppm/°C (typical)
• Suitable for reflow, wave, and hand soldering
• RoHS compliant & halogen free
• Excellent solderability and long-term stability
• The 470 Ohm 1206 SMD Resistor (marked as 471) is a precise thick-film chip resistor built for surface-mount applications in modern electronics. Featuring ±1% tolerance and a 1/4 Watt power rating, it ensures accurate resistance in demanding circuits while handling moderate power dissipation.
• Widely used in LED current limiting (common for 5V/3.3V LEDs with higher brightness), pull-up/pull-down resistors in digital circuits, voltage dividers, Arduino/Raspberry Pi projects, consumer electronics, power management, and general PCB prototyping or repairs. The 1206 size strikes an excellent balance between compactness and thermal performance, making it a staple in hobbyist and professional designs.
• Made with thick-film technology, it offers superior stability, moisture resistance, and compatibility with automated assembly processes like pick-and-place machines. Perfect for makers, engineers, students, and repair shops — available in convenient pack sizes for small projects or bulk production.
• What is the price of 470 Ohm 471 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?
• The latest price of 470 Ohm 471 1206 SMD Resistor 1/4W in Bangladesh starts from [product_price id=”32212″] taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.
• Buy 470 Ohm 471 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at [dunia_link].
• In Bangladesh, you can get original 470 Ohm 471 1206 SMD Resistor 1/4W From [dunia_link]. We have few collection of latest [selected_category] to purchase. Order [parent_category] Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does 471 mean on the SMD resistor?
   471 = 47 × 10¹ = 470 Ω (standard 3-digit SMD code).
2. What is the power rating of this 1206 470 ohm resistor?
   It is rated at 1/4 Watt (0.25 W).
3. Is this resistor ±1% or ±5% tolerance?
   This is the ±1% high-precision version.
4. Can I use this for LED current limiting?
   Yes — 470 Ω is a popular value for LEDs at 5V or 3.3V to achieve moderate brightness and safe current.
5. What are the dimensions of the 1206 package?
   1206 = 3.2 mm × 1.6 mm (length × width).
6. Is it compatible with reflow soldering?
   Yes, designed for reflow, wave, and manual soldering.
7. What is the operating temperature range?
   -55°C to +155°C.
8. Suitable for Arduino or Raspberry Pi projects?
   Yes — frequently used in microcontroller circuits for pull-ups, current limiting, and signal conditioning.
9. Is this resistor RoHS compliant?
   Yes, standard for modern SMD resistors.
10. How many pieces are in a pack?
    Available in packs of 10.
