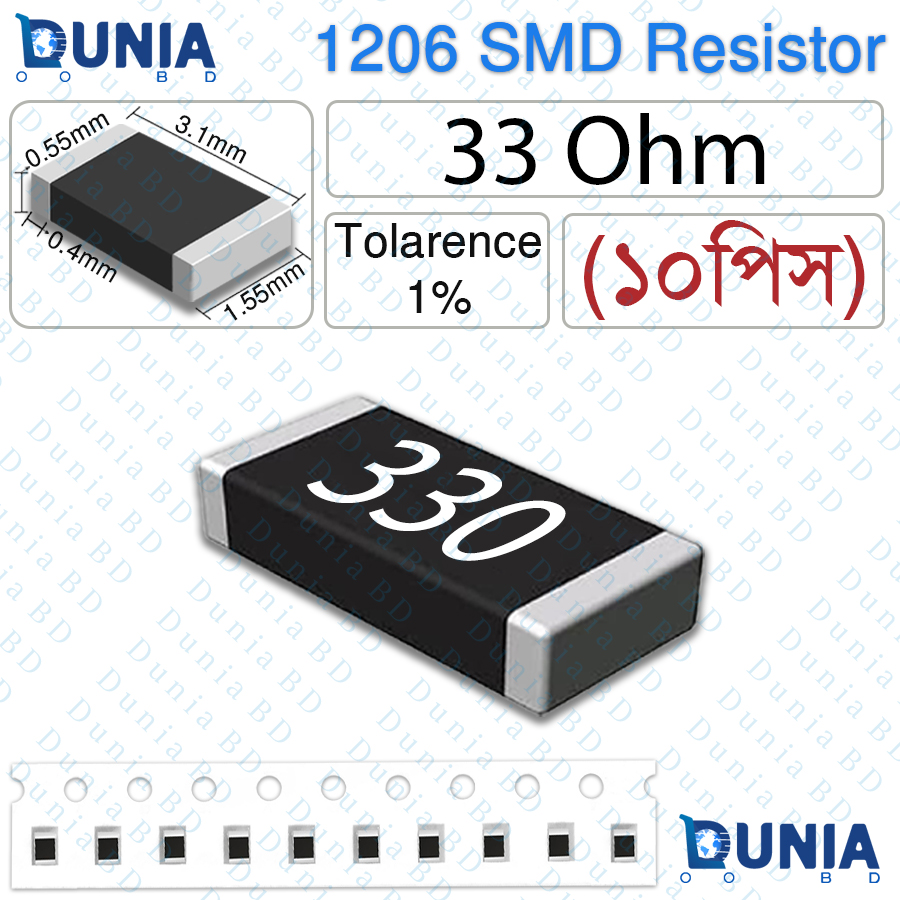

33 Ohm 330 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Description

Specifications

• 33 Ohm 330 1206 SMD Resistor 1/4W
• Resistance Value: 33 Ohm (330 marking)
• Tolerance: ±1%
• Power Rating: 1/4W (0.25W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Temperature Coefficient: ±100 ppm/°C (typical)
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 200V (typical)
• Dimensions: 3.2mm × 1.6mm × 0.55mm (approximate)
• Mounting Type: Surface Mount (SMD/SMT)
• Termination: Wraparound / Solderable

Features

• ±1% tolerance for high precision and low deviation
• Compact 1206 footprint (3.2mm × 1.6mm) suits high-density circuit boards
• 1/4 Watt (0.25W) power rating for general-purpose electronics
• Thick film technology ensures long-term stability and reliability
• Wide operating temperature range: typically -55°C to +155°C
• RoHS compliant and lead-free for modern manufacturing
• Excellent solder joint reliability with reflow and wave soldering
• Low temperature coefficient for consistent performance across temperatures
• The 33 Ohm (marked 330) 1206 SMD Resistor with ±1% tolerance and 0.25W power rating is a precision surface-mount component engineered for accuracy and durability in contemporary electronic designs. Constructed using thick film resistive material on a high-grade ceramic base, it offers stable resistance values, minimal noise, and excellent thermal characteristics over extended temperature ranges.
• The standard 1206 package is one of the most popular sizes for automated SMT assembly lines, compact consumer devices, LED drivers and arrays, audio and signal processing circuits, power management modules, sensor interfaces, IoT hardware, automotive electronics, and professional repair applications. Its tight 1% tolerance makes it especially suitable for circuits requiring precise current limiting (e.g., LED strings), accurate voltage division, stable pull-up/pull-down networks, or consistent biasing in analog designs.
• With a typical maximum working voltage of 200V and 0.25W dissipation capability, it performs reliably in both standard and moderately demanding conditions. Fully RoHS compliant and optimized for all common SMT soldering methods including reflow, wave, and hand soldering.
• Perfect for production runs, service stock, prototyping, hobbyist projects, and educational use—this 33Ω 1206 1% resistor combines professional-grade precision, robust construction, and cost-effectiveness.

What is the price of 33 Ohm 330 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 33 Ohm 330 1206 SMD Resistor 1/4W in Bangladesh starts from [product_price id=”32207″] taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 33 Ohm 330 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at [dunia_link].

In Bangladesh, you can get original 33 Ohm 330 1206 SMD Resistor 1/4W From [dunia_link]. We have few collection of latest [selected_category] to purchase. Order [parent_category] Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does the “330” marking mean on this 1206 resistor?
   “330” is the standard 3-digit SMD code for 33 Ohms (33 × 10⁰ = 33Ω).
2. Can this resistor handle power above 1/4 watt?
   No — the maximum continuous power rating is 0.25W; exceeding it may cause overheating or damage.
3. Why choose 1% tolerance over 5% for this value?
   1% tolerance keeps the resistance within ±0.33Ω of 33Ω, which is critical for precision current control in LEDs, sensors, or analog circuits.
4. Is 1206 size easy to hand-solder?
   Yes, 1206 is one of the most beginner-friendly SMD sizes for hand soldering with a fine-tip iron.
5. What are the exact dimensions of a 1206 resistor?
   Approximately 3.2 mm long × 1.6 mm wide × 0.55 mm high.
6. Is this resistor RoHS compliant and lead-free?
   Yes, modern 1206 SMD resistors are typically RoHS compliant and lead-free.
7. What is the safe operating temperature range?
   Usually reliable from -55°C to +155°C.
8. Can it be used in automotive or industrial applications?
   Yes, provided the voltage, power, and temperature remain within the specified limits.
9. How is 33Ω commonly marked on SMD resistors?
   The vast majority use the 3-digit code “330”.
10. Are these supplied in reels for automated pick-and-place?
    Yes, standard reel size is 5,000 pieces for machine assembly.
