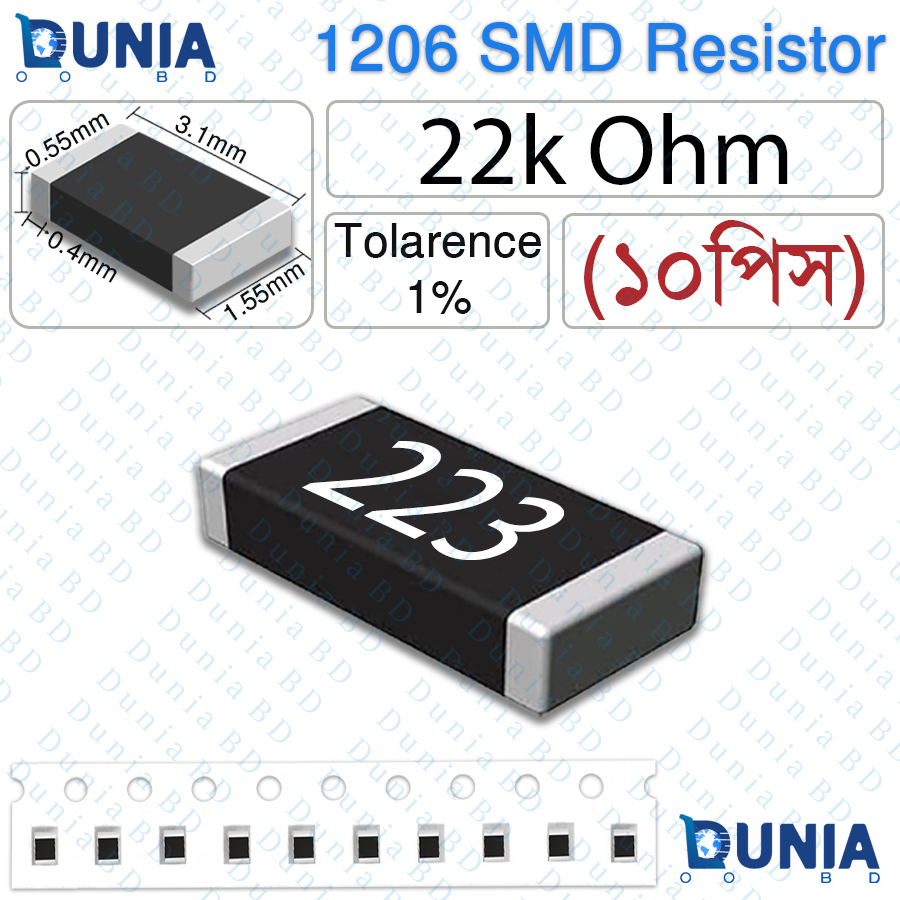

22K Ohm 223 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Description

Specifications

• 22K Ohm 223 1206 SMD Resistor 1/4W
• Resistance: 22K Ohms (22000 Ohms)
• Tolerance: ±1%
• Power Rating: 0.25W (1/4W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Operating Temperature: -55°C ~ +155°C
• Temperature Coefficient: ±100ppm/°C typical
• Dimensions: 3.2mm x 1.6mm x 0.55mm (approx.)
• Mounting Type: Surface Mount
• Packaging: Reel or Cut Tape
• RoHS Status: Compliant

Features

• Resistance Value: 22K Ohms (22000 Ohms, 223 marking)
• Case Size: 1206 (3.2mm x 1.6mm)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1% high precision
• Thick film technology – low noise, low temperature drift and excellent long-term stability
• Compact SMD footprint ideal for dense circuit boards
• Wide operating temperature range: -55°C to +155°C
• RoHS compliant and lead-free
• Reliable solderability and consistent performance
• The 22K Ohm 223 1206 SMD Resistor is a popular higher-resistance precision value frequently chosen when lower current draw or larger voltage division ratios are required. With 22,000 ohms resistance and tight ±1% tolerance, it performs very well in voltage divider networks (especially for analog sensors, potentiometer scaling, or ADC input conditioning), higher-impedance pull-up/pull-down configurations, op-amp feedback and gain-setting stages, RC timing and oscillator circuits, current limiting in low-current LEDs or indicator circuits, and many general-purpose analog and mixed-signal applications.Rated at 1/4W (0.25W) power dissipation, it operates with very low self-heating and remains thermally stable in typical designs.
• The 1206 package continues to be one of the most widely used SMD sizes thanks to its excellent balance of compactness, power capability, and ease of both automated placement and manual soldering/prototyping. Commonly seen in consumer electronics, audio circuits, instrumentation, battery-powered devices, industrial sensors, IoT modules, Arduino, Raspberry Pi, ESP32 projects, and professional PCB manufacturing.
• Constructed using thick film technology, this resistor delivers minimal temperature coefficient drift, extremely low excess noise, and robust long-term reliability. The “223” marking follows the standard 3-digit SMD code: 22 × 10³ = 22,000 Ohms. Fully RoHS compliant and optimized for lead-free reflow soldering processes.A smart addition to any parts kit or production stock—this 22KΩ 1% 1206 SMD resistor offers precise, consistent performance at an attractive price point. Available in bulk reels for high-volume use or small packs for hobbyists, developers and repair work.

What is the price of 22K Ohm 223 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 22K Ohm 223 1206 SMD Resistor 1/4W in Bangladesh starts from [product_price id=”32227″] taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 22K Ohm 223 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at [dunia_link].

In Bangladesh, you can get original 22K Ohm 223 1206 SMD Resistor 1/4W From [dunia_link]. We have few collection of latest [selected_category] to purchase. Order [parent_category] Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does 223 mean on this 1206 SMD resistor?
   223 = 22 × 10³ = 22,000 Ohms = 22KΩ
2. What is the power rating?
   1/4W (0.25 watts)
3. Is it really ±1% tolerance?
   Yes – precision ±1% version (much more accurate than 5%)
4. What are the physical dimensions?
   Approximately 3.2 mm × 1.6 mm × 0.55 mm
5. Can it be used in high-temperature environments?
   Yes – standard operating range -55°C to +155°C
6. When should I choose 22K instead of 10K or 15K?
   When you need higher resistance (lower current draw) for pull-ups or a steeper voltage division ratio in sensor/ADC applications
7. What technology is used?
   Thick film – excellent combination of precision, cost and reliability
8. How do you solder 1206 resistors?
   Reflow oven or hot-air station preferred; fine-tip soldering iron for manual work
9. Why 1206 package over smaller sizes?
   Better power handling (0.25W) and much easier to hand-solder and inspect
10. Where can I buy bulk quantities?
    DigiKey, Mouser, LCSC, Element14, Tayda, or local electronics distributors
